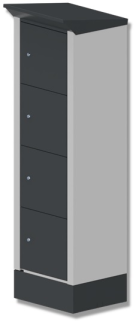

E-Bike charging station

85.359.499
E-Bike charging station IP 44 (WxDxH) 600x500x2095/2000mm 1x4 compartments type D 230V/50Hz, FI/LS type A 30mA/6A coin-collecting lock Light grey RAL 7035 / Grey metallic NCS S 6502-B
remove add add_shopping_cart
Other color variants
494
495
497
498

Description

„Outdoor” powered compartment cabinets IP 44. Unlimited e-mobility: For charging e-bike batteries and much more.

Housing size:
Width 600 x depth 500 x
height 2095/2000 mm
Compartment size:
Width 500 x depth 470 x height 435 mm
Usable dimensions per compartment:
Width 370 x depth 470 x height 370 mm
Equipment per compartment:
2 x 220 volt socket incl. cover
1 x fault-current circuit breaker
1 x circuit breaker

The connection distribution box is located in the base cover as sloping roof version (removable) and left side wall (removable) as revision access. Specification: sheet steel. Colour: according to colour chart.

Technical Data

Description
E-Bike charging station
Net weight kg
85
Width mm
600
Depth mm
585
Height mm
2095
Locking system
Coin-collecting lock
Number of compartments
1 x 4
Number of compartments side by side
1
Number of compartments stacked
4
Compartment width mm
500
Compartment height mm
435
Clear compartment height mm
370
Type
D / Schuko (Type CEE 7/7)
Module per compartment
230V/50Hz, FI/LS Type A 30mA/6A
Specification
with base, 200 mm
Door type
Compartment doors
Door material
Solid sheet
Hinge pins mounted
mounted on the right
Door specification
double-walled, self-closing doors with opening limiter
Top
inclined
Colour
Light grey RAL 7035 / Grey metallic NCS S 6502-B
Product specific advantages
add_box

Maximum stability
Welded sheet steel housing made of electrolytically galvanised sheet steel and double-walled, self-closing doors with opening limiter

add_box

Excellent protection properties
High-quality polyester resin powder coating with high light and weather resistance, cabinet housing and electrical components protected against splashes – IP44 in accordance with DIN EN 60529, inclined top with front projection as rain protection

add_box

Perfect cable management
Protected cabling, on-site power supply via underground cable or punch-out, access in the base to the waterproof distribution box (IP65), top and left side panel removable as inspection openings (screwed), inspection opening in the lower compartment including junction box in base area

add_box

Sophisticated ventilation
Integrated heat ventilation channel and passive ventilation per compartment

add_box

Secure locking option
with security cylinder lock, coin deposit lock or cashier lock (other locking systems on request)

add_box

Outstanding security
CE-compliant
