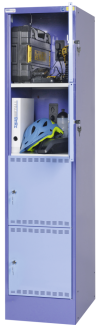

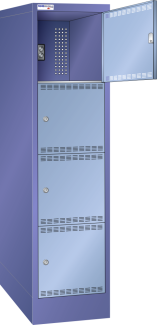

Battery charging cabinet

85.274.501
Battery charging cabinet with compartments (WxDxH) 415x580x1790mm 1x4 compartments type CH 2x230V KEY Lock Pigeon blue NCS S 4040-R70 B / Light blue NCS S 1060-R80 B
remove add add_shopping_cart
Other color variants
010
020
030
060
070
080
110
170
200
210
220
240
502
503
506
512
514
516
875
876
966

Description

„Indoor” powered compartment cabinets. For e-bike batteries, smartphones, tablets, laptops, operating data collection devices, battery-powered tools and much more. One energy module with two sockets (230 V) per compartment already installed. Load capacity per compartment is 25 kg.

Technical Data

Description
Battery charging cabinet
Net weight kg
44
Width mm
415
Depth mm
580
Height mm
1790
Locking system
KEY Lock (Cylinder lock)
Number of compartments
4
Number of compartments side by side
1
Number of compartments stacked
4
Number of locks
4
Compartment width mm
400
Compartment height mm
400
Clear compartment width mm
340
Clear compartment height mm
380
Type
CH (Type T13)
IP Code
IP 20
Module per compartment
2 x 230 V
Specification
with base, 150 mm
Door type
Compartment doors
Door material
Solid sheet
Hinge pins mounted
mounted on the right
Door specification
Air vents at the top and bottom
Colour
Pigeon blue NCS S 4040-R70 B / Light blue NCS S 1060-R80 B
