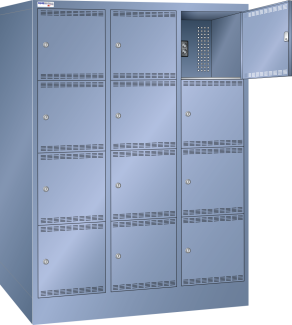

Battery charging cabinet

53.073.210
Battery charging cabinet with compartments (WxDxH) 1205x580x1790mm 3x4 compartments type FR/BE 2x230V KEY Lock Brilliant blue RAL 5007
remove add add_shopping_cart
Other color variants
010
020
030
060
070
080
110
170
200
220
240
501
502
503
506
512
514
516
875
876
966

Description

„Indoor” powered compartment cabinets. For e-bike batteries, smartphones, tablets, laptops, operating data collection devices, battery-powered tools and much more. One energy module with two sockets (230 V) per compartment already installed. Load capacity per compartment is 25 kg.

Technical Data

Description
Battery charging cabinet
Net weight kg
124
Width mm
1205
Depth mm
580
Height mm
1790
Locking system
KEY Lock (Cylinder lock)
Number of compartments
3 x 4
Number of compartments side by side
3
Number of compartments stacked
4
Number of locks
12
Compartment width mm
400
Compartment height mm
400
Clear compartment width mm
340
Clear compartment height mm
380
Type
F (Type CEE 7/7)
IP Code
IP 20
Module per compartment
2 x 230 V
Specification
with base, 150 mm
Door type
Compartment doors
Door material
Solid sheet
Hinge pins mounted
mounted on the right
Door specification
Air vents at the top and bottom
Colour
Brilliant blue RAL 5007
Product specific advantages
add_box

Flexible range of applications
with charging options for battery-operated electrical machines, BDE devices, notebooks, tablets, smartphones or e-bikes

add_box

Sophisticated ventilation
optimal air circulation thanks to ventilation holes at the front and back

add_box

Outstanding design diversity
with sockets, network sockets RJ45 and USB interfaces

add_box

Outstanding safety features
CE-compliant

add_box

Secure locking option
Devices are locked away at all times and are protected against unauthorised access
